- CPU
- LGA1700 socket: Support for 13th Generation Intel ® Core Processors and 12th Generation Intel ® Core, Pentium ® Gold and Celeron ® Processors*
- L3 cache varies with CPU
- Chipset
- Intel ® H610 Express Chipset
- Memory
- 13th Generation Intel ® Core i9/i7 processors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules - 13th Generation Intel ® Core i5/i3 and 12th Generation Intel ® Core, Pentium ® Gold and Celeron ® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
- 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- 13th Generation Intel ® Core i9/i7 processors:
- Onboard Graphics Integrated Graphics Processor-Intel ® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
- Audio
- Realtek ® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN
- Realtek ® GbE LAN chip (1 Gbps/100 Mbps)
- Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Storage Interface Chipset:
- 1 x M. 2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- USB Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M. 2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

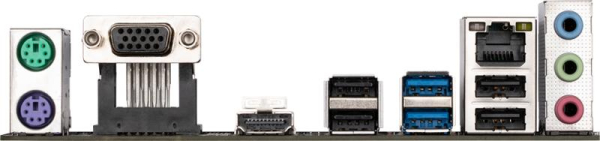

- Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controller
- iTE ® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
- Bundled Software
- Norton ® Internet Security (OEM version)
- LAN bandwidth management software
- Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 23.0cm x 21.5cm
